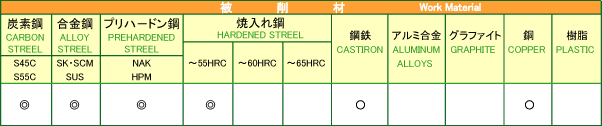

対応被削材表(◎は最適、○は適)                ★ご注文は型番をクリックして ください

型番 先端径 テーパ半角 コーナ半径 刃長 大端径 全長 シャンク径 定 価 特別価格
C-CRT 4030-05-1 3 30′ 0.5 10 3.17 50 6 17,850 10,710
C-CRT 4030-05-2 3 1゜ 0.5 10 3.35 50 6 17,850 10,710
C-CRT 4030-05-3 3 1゜30′ 0.5 10 3.52 50 6 17,850 10,710
C-CRT 4030-05-4 3 2゜ 0.5 10 3.70 50 6 17,850 10,710
C-CRT 4030-05-5 3 2゜30′ 0.5 10 3.87 50 6 17,850 10,710
C-CRT 4030-05-6 3 3゜ 0.5 10 4.05 50 6 17,850 10,710
C-CRT 4030-05-10 3 5゜ 0.5 10 4.75 50 6 18,900 11,340
C-CRT 4030-05-14 3 7゜ 0.5 10 5.46 50 6 19,950 11,970
C-CRT 4040-05-1 4 30′ 0.5 15 4.26 50 6 17,850 10,710
C-CRT 4040-05-2 4 1゜ 0.5 15 4.52 50 6 17,850 10,710
C-CRT 4040-05-3 4 1゜30′ 0.5 15 4.79 50 6 17,850 10,710
C-CRT 4040-05-4 4 2゜ 0.5 15 5.05 50 6 17,850 10,710
C-CRT 4040-05-5 4 2゜30′ 0.5 15 5.31 50 6 17,850 10,710
C-CRT 4040-05-6 4 3゜ 0.5 15 5.57 50 6 17,850 10,710
C-CRT 4040-05-10 4 5゜ 0.5 15 6.62 50 8 23,100 13,860
C-CRT 4040-05-14 4 7゜ 0.5 15 7.68 50 8 25,300 15,180
C-CRT 4050-05-1 5 30′ 0.5 20 5.35 60 6 19,950 11,970
C-CRT 4050-05-2 5 1゜ 0.5 20 5.70 60 6 19,950 11,970
C-CRT 4050-05-3 5 1゜30′ 0.5 20 6.05 60 8 20,900 12,540
C-CRT 4050-05-4 5 2゜ 0.5 20 6.40 60 8 20,900 12,540
C-CRT 4050-05-5 5 2゜30′ 0.5 20 6.75 60 8 20,900 12,540
C-CRT 4050-05-6 5 3゜ 0.5 20 7.10 60 8 20,900 12,540
C-CRT 4050-05-10 5 5゜ 0.5 20 8.50 60 10 28,600 17,160
C-CRT 4050-05-14 5 7゜ 0.5 20 9.91 60 10 30,800 18,480
C-CRT 4060-05-1 6 30′ 0.5 20 6.35 60 8 23,100 13,860
C-CRT 4060-10-1 6 30′ 1 20 6.35 60 8 23,650 14,190
C-CRT 4060-05-2 6 1゜ 0.5 20 6.70 60 8 23,100 13,860
C-CRT 4060-10-2 6 1゜ 1 20 6.70 60 8 23,650 14,190
C-CRT 4060-05-3 6 1゜30′ 0.5 20 7.05 60 8 23,100 13,860
C-CRT 4060-10-3 6 1゜30′ 1 20 7.05 60 8 23,650 14,190
C-CRT 4060-05-4 6 2゜ 0.5 20 7.40 60 8 23,100 13,860
C-CRT 4060-10-4 6 2゜ 1 20 7.40 60 8 23,650 14,190
C-CRT 4060-05-5 6 2゜30′ 0.5 20 7.75 60 8 23,100 13,860
C-CRT 4060-10-5 6 2゜30′ 1 20 7.75 60 8 23,650 14,190
C-CRT 4060-05-6 6 3゜ 0.5 20 8.10 60 10 23,100 13,860
C-CRT 4060-10-6 6 3゜ 1 20 8.10 60 10 23,650 14,190
C-CRT 4060-05-10 6 5゜ 0.5 20 9.50 60 10 30,800 18,480
C-CRT 4060-10-10 6 5゜ 1 20 9.50 60 10 30,800 18,480
C-CRT 4060-05-14 6 7゜ 0.5 20 10.91 60 12 36,300 21,780
C-CRT 4060-10-14 6 7゜ 1 20 10.91 60 12 36,300 21,780
C-CRT 4080-05-1 8 30′ 0.5 25 8.44 70 10 29,920 17,952
C-CRT 4080-10-1 8 30′ 1 25 8.44 70 10 31,020 18,612
C-CRT 4080-15-1 8 30′ 1.5 25 8.44 70 10 31,020 18,612
C-CRT 4080-05-2 8 1゜ 0.5 25 8.87 70 10 29,920 17,952
C-CRT 4080-10-2 8 1゜ 1 25 8.87 70 10 31,020 18,612
C-CRT 4080-15-2 8 1゜ 1.5 25 8.87 70 10 31,020 18,612
C-CRT 4080-05-3 8 1 ゜30′ 0.5 25 9.31 70 10 34,430 20,658
C-CRT 4080-10-3 8 1 ゜30′ 1 25 9.31 70 10 35,530 21,318
C-CRT 4080-15-3 8 1 ゜30′ 1.5 25 9.31 70 10 34,430 20,658
C-CRT 4080-05-4 8 2゜ 0.5 25 9.75 70 10 34,430 20,658
C-CRT 4080-10-4 8 2゜ 1 25 9.75 70 10 35,530 21,318
C-CRT 4080-15-4 8 2゜ 1.5 25 9.75 70 10 34,430 20,658
C-CRT 4080-05-5 8 2゜30 0.5 25 10.18 75 12 37,070 22,242
C-CRT 4080-10-5 8 2゜30 1 25 10.18 75 12 37,070 22,242
C-CRT 4080-15-5 8 2゜30 1.5 25 10.18 75 12 37,070 22,242
C-CRT 4080-05-6 8 3゜ 0.5 25 10.62 75 12 37,070 22,242
C-CRT 4080-10-6 8 3゜ 1 25 10.62 75 12 37,070 22,242
C-CRT 4080-15-6 8 3゜ 1.5 25 10.62 75 12 37,070 22,242
C-CRT 4080-05-10 8 5゜ 0.5 25 12.37 90 12 53,680 32,208
C-CRT 4080-10-10 8 5゜ 1 25 12.37 90 12 53,680 32,208
C-CRT 4080-15-10 8 5゜ 1.5 25 12.37 90 12 53,680 32,208
C-CRT 4100-05-1 10 30′ 0.5 35 10.61 90 12 37,730 22,638
C-CRT 4100-10-1 10 30′ 1 35 10.61 90 12 37,730 22,638
C-CRT 4100-15-1 10 30′ 1.5 35 10.61 90 12 37,730 22,638
C-CRT 4100-20-1 10 30′ 2 35 10.61 90 12 37,730 22,638
C-CRT 4100-05-2 10 1゜ 0.5 35 11.22 90 12 37,730 22,638
C-CRT 4100-10-2 10 1゜ 1 35 11.22 90 12 37,730 22,638
C-CRT 4100-15-2 10 1゜ 1.5 35 11.22 90 12 37,730 22,638
C-CRT 4100-20-2 10 1゜ 2 35 11.22 90 12 37,730 22,638
C-CRT 4100-05-3 10 1゜30′ 0.5 35 11.83 90 12 37,730 22,638
C-CRT 4100-10-3 10 1゜30′ 1 35 11.83 90 12 37,730 22,638
C-CRT 4100-15-3 10 1゜30′ 1.5 35 11.83 90 12 37,730 22,638
C-CRT 4100-20-3 10 1゜30′ 2 35 11.83 90 12 37,730 22,638
