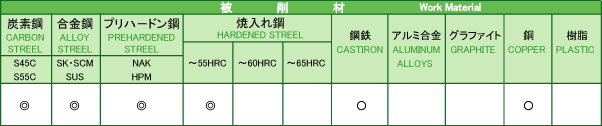

対応被削材表（◎は最適、○は適） ★ご注文は型番をクリックして ください
|
| 型番 | ボール半径 | テーパ半角 | 刃長 | 大端径 | 全長 | シャンク径 | 定価 | 特別価格 |
| C-CTB 2004-6 | R0.2 | 3° | 3 | 0.7 | 40 | 4 | 16,000 | 9,600 |
| C-CTB 2004-10 | R0.2 | 5° | 3 | 0.89 | 40 | 4 | 16,000 | 9,600 |
| C-CTB 2004-14 | R0.2 | 7° | 3 | 1.1 | 40 | 4 | 18,000 | 10,800 |
| C-CTB 2004-20 | R0.2 | 10° | 3 | 1.41 | 40 | 4 | 19,000 | 11,400 |
| C-CTB 2006-6 | R0.3 | 3° | 3 | 0.89 | 40 | 4 | 14,000 | 8,400 |
| C-CTB 2006-10 | R0.3 | 5° | 3 | 1.08 | 40 | 4 | 14,000 | 8,400 |
| C-CTB 2006-14 | R0.3 | 7° | 3 | 1.28 | 40 | 4 | 15,000 | 9,000 |
| C-CTB 2006-20 | R0.3 | 10° | 3 | 1.58 | 40 | 4 | 18,000 | 10,800 |
| C-CTB 2010-1 | R0.5 | 30′ | 3 | 1.04 | 40 | 4 | 14,000 | 8,400 |
| C-CTB 2010-2 | R0.5 | １° | 3 | 1.09 | 40 | 4 | 14,000 | 8,400 |
| C-CTB 2010-3 | R0.5 | １°30′ | 3 | 1.13 | 40 | 4 | 14,000 | 8,400 |
| C-CTB 2010-4 | R0.5 | 2° | 3 | 1.18 | 40 | 4 | 14,000 | 8,400 |
| C-CTB 2010-6 | R0.5 | 3° | 3 | 1.26 | 40 | 4 | 14,000 | 8,400 |
| C-CTB 2010-10 | R0.5 | 5° | 3 | 1.45 | 40 | 4 | 14,000 | 8,400 |
| C-CTB 2010-14 | R0.5 | 7° | 6 | 2.36 | 40 | 4 | 14,000 | 8,400 |
| C-CTB 2015-1 | R0.75 | 30′ | 6 | 1.59 | 40 | 4 | 14,000 | 8,400 |
| C-CTB 2015-2 | R0.75 | １° | 6 | 1.68 | 40 | 4 | 14,000 | 8,400 |
| C-CTB 2015-3 | R0.75 | １° 30′ | 6 | 1.78 | 40 | 4 | 14,000 | 8,400 |
| C-CTB 2015-4 | R0.75 | 2° | 6 | 1.87 | 40 | 4 | 14,000 | 8,400 |
| C-CTB 2015-6 | R0.75 | 3° | 6 | 2.05 | 40 | 4 | 14,000 | 8,400 |
| C-CTB 2015-10 | R0.75 | 5° | 6 | 2.42 | 40 | 4 | 14,000 | 8,400 |
| C-CTB 2015-14 | R0.75 | 7° | 6 | 2.8 | 40 | 4 | 14,000 | 8,400 |
| C-CTB 2020-1 | R1 | 30′ | 8 | 2.12 | 40 | 4 | 15,000 | 9,000 |
| C-CTB 2020-2 | R1 | １° | 8 | 2.24 | 40 | 4 | 15,000 | 9,000 |
| C-CTB 2020-3 | R1 | １° 30′ | 8 | 2.37 | 40 | 4 | 15,000 | 9,000 |
| C-CTB 2020-4 | R1 | 2° | 8 | 2.49 | 40 | 4 | 15,000 | 9,000 |
| C-CTB 2020-6 | R1 | 3° | 8 | 2.74 | 40 | 4 | 15,000 | 9,000 |
| C-CTB 2020-8 | R1 | 4° | 8 | 2.98 | 40 | 4 | 15,000 | 9,000 |
| C-CTB 2020-10 | R1 | 5° | 8 | 3.23 | 40 | 4 | 15,000 | 9,000 |
| C-CTB 2020-14 | R1 | 7° | 8 | 3.73 | 50 | 6 | 15,750 | 9,450 |
| C-CTB 2025-1 | R1.25 | 30′ | 10 | 2.65 | 45 | 4 | 16,000 | 9,600 |
| C-CTB 2025-2 | R1.25 | １° | 10 | 2.81 | 45 | 4 | 16,000 | 9,600 |
| C-CTB 2025-3 | R1.25 | １° 30′ | 10 | 2.96 | 45 | 4 | 16,000 | 9,600 |
| C-CTB 2025-4 | R1.25 | 2° | 10 | 3.11 | 45 | 4 | 16,000 | 9,600 |
| C-CTB 2025-6 | R1.25 | 3° | 10 | 3.42 | 45 | 4 | 16,000 | 9,600 |
| C-CTB 2025-8 | R1.25 | 4° | 10 | 3.73 | 50 | 6 | 16,800 | 10,080 |
| C-CTB 2025-10 | R1.25 | 5° | 10 | 4.04 | 50 | 6 | 16,800 | 10,080 |
| C-CTB 2025-14-S6 | R1.25 | 7° | 14.5 | 5.75 | 60 | 6 | 16,800 | 10,080 |
| C-CTB 2025-14 | R1.25 | 7° | 15 | 5.9 | 60 | 8 | 17,600 | 10,560 |
| C-CTB 2030-14-S6 | R1.5 | 7° | 12.5 | 5.7 | 60 | 6 | 16,800 | 10,080 |
| C-CTB 2030-14 | R1.5 | 7° | 15 | 6.34 | 60 | 8 | 18,700 | 11,220 |
