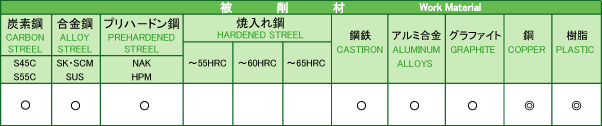

対応被削材表（◎は最適、○は適） ★ご注文は型番をクリックして ください
 |
|
| 型番 | 刃数 | ボール半径 | 有効長 | 刃長 | 首径 | シャンクテーパ角 | 全長 | シャンク径 | 定価 | 特別価格 |
| CPRB 2004-1 | 2 | R0.2 | 1 | 0.4 | 0.36 | 11° | 45 | 4 | 8,000 | 4,800 |
| CPRB 2004-2 | 2 | R0.2 | 2 | 0.4 | 0.36 | 11° | 45 | 4 | 8,800 | 5,280 |
| CPRB 2004-3 | 2 | R0.2 | 3 | 0.4 | 0.36 | 11° | 45 | 4 | 9,800 | 5,880 |
| CPRB 2005-2 | 2 | R0.25 | 2 | 0.8 | 0.46 | 11° | 45 | 4 | 8,000 | 4,800 |
| CPRB 2005-4 | 2 | R0.25 | 4 | 0.8 | 0.46 | 11° | 45 | 4 | 8,000 | 4,800 |
| CPRB 2005-6 | 2 | R0.25 | 6 | 0.8 | 0.46 | 11° | 45 | 4 | 8,800 | 5,280 |
| CPRB 2005-8 | 2 | R0.25 | 8 | 0.8 | 0.46 | 11° | 45 | 4 | 8,800 | 5,280 |
| CPRB 2005-10 | 2 | R0.25 | 10 | 0.8 | 0.46 | 11° | 50 | 4 | 9,500 | 5,700 |
| CPRB 2006-2 | 2 | R0.3 | 2 | 1 | 0.56 | 11° | 45 | 4 | 8,000 | 4,800 |
| CPRB 2006-4 | 2 | R0.3 | 4 | 1 | 0.56 | 11° | 45 | 4 | 8,000 | 4,800 |
| CPRB 2006-6 | 2 | R0.3 | 6 | 1 | 0.56 | 11° | 45 | 4 | 8,000 | 4,800 |
| CPRB 2006-8 | 2 | R0.3 | 8 | 1 | 0.56 | 11° | 45 | 4 | 8,000 | 4,800 |
| CPRB 2008-2 | 2 | R0.4 | 2 | 1.1 | 0.76 | 11° | 45 | 4 | 8,000 | 4,800 |
| CPRB 2008-4 | 2 | R0.4 | 4 | 1.1 | 0.76 | 11° | 45 | 4 | 8,000 | 4,800 |
| CPRB 2008-6 | 2 | R0.4 | 6 | 1.1 | 0.76 | 11° | 45 | 4 | 8,000 | 4,800 |
| CPRB 2008-8 | 2 | R0.4 | 8 | 1.1 | 0.76 | 11° | 45 | 4 | 8,000 | 4,800 |
| CPRB 2008-10 | 2 | R0.4 | 10 | 1.1 | 0.76 | 11° | 50 | 4 | 8,000 | 4,800 |
| CPRB 2010-3 | 2 | R0.5 | 3 | 1.2 | 0.93 | 11° | 45 | 4 | 8,000 | 4,800 |
| CPRB 2010-4 | 2 | R0.5 | 4 | 1.2 | 0.93 | 11° | 45 | 4 | 8,000 | 4,800 |
| CPRB 2010-6 | 2 | R0.5 | 6 | 1.2 | 0.93 | 11° | 45 | 4 | 8,000 | 4,800 |
| CPRB 2010-8 | 2 | R0.5 | 8 | 1.2 | 0.93 | 11° | 45 | 4 | 8,000 | 4,800 |
| CPRB 2010-10 | 2 | R0.5 | 10 | 1.2 | 0.93 | 11° | 45 | 4 | 8,000 | 4,800 |
| CPRB 2010-12 | 2 | R0.5 | 12 | 1.2 | 0.93 | 11° | 45 | 4 | 8,000 | 4,800 |
| CPRB 2010-14 | 2 | R0.5 | 14 | 1.2 | 0.93 | 11° | 50 | 4 | 8,000 | 4,800 |
| CPRB 2010-16 | 2 | R0.5 | 16 | 1.2 | 0.93 | 11° | 50 | 4 | 8,000 | 4,800 |
| CPRB 2010-20 | 2 | R0.5 | 20 | 1.2 | 0.93 | 11° | 55 | 4 | 9,000 | 5,400 |
| CPRB 2012-8 | 2 | R0.6 | 8 | 1.3 | 1.13 | 11° | 45 | 4 | 8,000 | 4,800 |
| CPRB 2012-12 | 2 | R0.6 | 12 | 1.3 | 1.13 | 11° | 45 | 4 | 8,000 | 4,800 |
| CPRB 2014-8 | 2 | R0.7 | 8 | 1.4 | 1.33 | 11° | 45 | 4 | 8,000 | 4,800 |
| CPRB 2014-12 | 2 | R0.7 | 12 | 1.4 | 1.33 | 11° | 45 | 4 | 8,000 | 4,800 |
| CPRB 2014-16 | 2 | R0.7 | 16 | 1.4 | 1.33 | 11° | 50 | 4 | 8,000 | 4,800 |
| CPRB 2015-6 | 2 | R0.75 | 6 | 1.45 | 1.43 | 11° | 45 | 4 | 7,300 | 4,380 |
| CPRB 2015-8 | 2 | R0.75 | 8 | 1.45 | 1.43 | 11° | 45 | 4 | 8,000 | 4,800 |
| CPRB 2015-10 | 2 | R0.75 | 10 | 1.45 | 1.43 | 11° | 45 | 4 | 8,000 | 4,800 |
| CPRB 2015-12 | 2 | R0.75 | 12 | 1.45 | 1.43 | 11° | 45 | 4 | 8,000 | 4,800 |
| CPRB 2015-16 | 2 | R0.75 | 16 | 1.45 | 1.43 | 11° | 50 | 4 | 8,000 | 4,800 |
| CPRB 2015-20 | 2 | R0.75 | 20 | 1.45 | 1.43 | 11° | 55 | 4 | 8,000 | 4,800 |
| CPRB 2016-8 | 2 | R0.8 | 8 | 1.5 | 1.5 | 11° | 45 | 4 | 8,000 | 4,800 |
| CPRB 2016-12 | 2 | R0.8 | 12 | 1.5 | 1.5 | 11° | 45 | 4 | 8,000 | 4,800 |
| CPRB 2016-16 | 2 | R0.8 | 16 | 1.5 | 1.5 | 11° | 50 | 4 | 8,000 | 4,800 |
| CPRB 2016-20 | 2 | R0.8 | 20 | 1.5 | 1.5 | 11° | 55 | 4 | 8,000 | 4,800 |
| CPRB 2018-8 | 2 | R0.9 | 8 | 1.6 | 1.7 | 11° | 45 | 4 | 8,000 | 4,800 |
| CPRB 2018-12 | 2 | R0.9 | 12 | 1.6 | 1.7 | 11° | 45 | 4 | 8,000 | 4,800 |
| CPRB 2018-16 | 2 | R0.9 | 16 | 1.6 | 1.7 | 11° | 50 | 4 | 8,000 | 4,800 |
| CPRB 2018-20 | 2 | R0.9 | 20 | 1.6 | 1.7 | 11° | 55 | 4 | 8,000 | 4,800 |
| CPRB 2020-4 | 2 | R1 | 4 | 1.7 | 1.9 | 11° | 45 | 4 | 8,000 | 4,800 |
| CPRB 2020-6 | 2 | R1 | 6 | 1.7 | 1.9 | 11° | 45 | 4 | 8,000 | 4,800 |
| CPRB 2020-8 | 2 | R1 | 8 | 1.7 | 1.9 | 11° | 45 | 4 | 8,000 | 4,800 |
| CPRB 2020-10 | 2 | R1 | 10 | 1.7 | 1.9 | 11° | 45 | 4 | 8,000 | 4,800 |
| CPRB 2020-12 | 2 | R1 | 12 | 1.7 | 1.9 | 11° | 45 | 4 | 8,000 | 4,800 |
| CPRB 2020-14 | 2 | R1 | 14 | 1.7 | 1.9 | 11° | 50 | 4 | 8,000 | 4,800 |
| CPRB 2020-16 | 2 | R1 | 16 | 1.7 | 1.9 | 11° | 50 | 4 | 8,000 | 4,800 |
| CPRB 2020-20 | 2 | R1 | 20 | 1.7 | 1.9 | 11° | 55 | 4 | 8,000 | 4,800 |
| CPRB 2020-22 | 2 | R1 | 22 | 1.7 | 1.9 | 11° | 60 | 4 | 8,000 | 4,800 |
| CPRB 2020-25 | 2 | R1 | 25 | 1.7 | 1.9 | 11° | 65 | 4 | 8,000 | 4,800 |
| CPRB 2020-30 | 2 | R1 | 30 | 1.7 | 1.9 | 11° | 70 | 4 | 9,000 | 5,400 |
| CPRB 2030-8 | 2 | R1.5 | 8 | 2.5 | 2.9 | 11° | 60 | 6 | 10,080 | 6,048 |
| CPRB 2030-10 | 2 | R1.5 | 10 | 2.5 | 2.9 | 11° | 60 | 6 | 9,770 | 5,862 |
| CPRB 2030-12 | 2 | R1.5 | 12 | 2.5 | 2.9 | 11° | 60 | 6 | 9,770 | 5,862 |
| CPRB 2030-16 | 2 | R1.5 | 16 | 2.5 | 2.9 | 11° | 60 | 6 | 9,770 | 5,862 |
| CPRB 2030-20 | 2 | R1.5 | 20 | 2.5 | 2.9 | 11° | 70 | 6 | 9,770 | 5,862 |
| CPRB 2030-25 | 2 | R1.5 | 25 | 2.5 | 2.9 | 11° | 70 | 6 | 9,770 | 5,862 |
| CPRB 2030-30 | 2 | R1.5 | 30 | 2.5 | 2.9 | 11° | 70 | 6 | 10,080 | 6,048 |
| CPRB 2030-35 | 2 | R1.5 | 35 | 2.5 | 2.9 | 11° | 80 | 6 | 10,500 | 6,300 |
| CPRB 2040-10 | 2 | R2 | 10 | 3 | 3.8 | 11° | 70 | 6 | 9,770 | 5,862 |
| CPRB 2040-12 | 2 | R2 | 12 | 3 | 3.8 | 11° | 70 | 6 | 9,770 | 5,862 |
| CPRB 2040-16 | 2 | R2 | 16 | 3 | 3.8 | 11° | 70 | 6 | 9,770 | 5,862 |
| CPRB 2040-20 | 2 | R2 | 20 | 3 | 3.8 | 11° | 70 | 6 | 9,770 | 5,862 |
| CPRB 2040-25 | 2 | R2 | 25 | 3 | 3.8 | 11° | 70 | 6 | 9,770 | 5,862 |
| CPRB 2040-30 | 2 | R2 | 30 | 3 | 3.8 | 11° | 70 | 6 | 9,770 | 5,862 |
| CPRB 2040-35 | 2 | R2 | 35 | 3 | 3.8 | 11° | 80 | 6 | 10,080 | 6,048 |
| CPRB 2040-40 | 2 | R2 | 40 | 3 | 3.8 | 11° | 80 | 6 | 11,030 | 6,618 |
| CPRB 2040-45 | 2 | R2 | 45 | 3 | 3.8 | 11° | 90 | 6 | 12,080 | 7,248 |
| CPRB 2040-50 | 2 | R2 | 50 | 3 | 3.8 | 11° | 100 | 6 | 13,130 | 7,878 |
| CPRB 2050-20 | 2 | R2.5 | 20 | 3.5 | 4.8 | 11° | 70 | 6 | 12,080 | 7,248 |
| CPRB 2050-25 | 2 | R2.5 | 25 | 3.5 | 4.8 | 11° | 70 | 6 | 12,080 | 7,248 |
| CPRB 2050-30 | 2 | R2.5 | 30 | 3.5 | 4.8 | 11° | 80 | 6 | 13,130 | 7,878 |
| CPRB 2050-35 | 2 | R2.5 | 35 | 3.5 | 4.8 | 11° | 80 | 6 | 13,130 | 7,878 |
| CPRB 2060-30 | 2 | R3 | 30 | 6 | 5.8 | − | 80 | 6 | 10,080 | 6,048 |
| CPRB 2060-50 | 2 | R3 | 50 | 6 | 5.8 | − | 120 | 6 | 12,180 | 7,308 |
