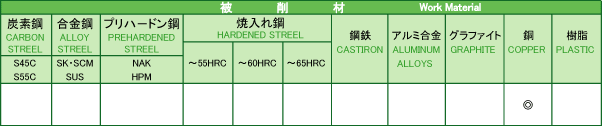

対応被削材表（◎は最適、○は適） ★ご注文は型番をクリックして ください
 |
|
| 型番 | 刃数 | ボール半径 | 有効長 | 刃長 | 首径 | シャンクテーパ角 | 全長 | シャンク径 | 定価 | 特別価格 |
| CRN-RB 2010-4 | 2 | R0.5 | 4 | 0.8 | 0.96 | 16° | 45 | 4 | 6,200 | 3,720 |
| CRN-RB 2010-6 | 2 | R0.5 | 6 | 0.8 | 0.96 | 16° | 45 | 4 | 6,700 | 4,020 |
| CRN-RB 2010-8 | 2 | R0.5 | 8 | 0.8 | 0.96 | 16° | 45 | 4 | 6,700 | 4,020 |
| CRN-RB 2010-10 | 2 | R0.5 | 10 | 0.8 | 0.96 | 16° | 45 | 4 | 6,700 | 4,020 |
| CRN-RB 2010-12 | 2 | R0.5 | 12 | 0.8 | 0.96 | 16° | 45 | 4 | 6,700 | 4,020 |
| CRN-RB 2020-6 | 2 | R1 | 6 | 1.6 | 1.94 | 11° | 45 | 4 | 6,200 | 3,720 |
| CRN-RB 2020-10 | 2 | R1 | 10 | 1.6 | 1.94 | 11° | 45 | 4 | 6,700 | 4,020 |
| CRN-RB 2020-14 | 2 | R1 | 14 | 1.6 | 1.94 | 11° | 50 | 4 | 6,700 | 4,020 |
| CRN-RB 2020-20 | 2 | R1 | 20 | 1.6 | 1.94 | 11° | 55 | 4 | 6,700 | 4,020 |
| CRN-RB 2030-16 | 2 | R1.5 | 16 | 2.4 | 2.91 | 11° | 60 | 6 | 9,140 | 5,484 |
| CRN-RB 2030-25 | 2 | R1.5 | 25 | 2.4 | 2.91 | 11° | 70 | 6 | 9,140 | 5,484 |
| CRN-RB 2030-35 | 2 | R1.5 | 35 | 2.4 | 2.91 | 11° | 80 | 6 | 10,500 | 6,300 |
| CRN-RB 2040-20 | 2 | R2 | 20 | 3.2 | 3.91 | 11° | 70 | 6 | 9,140 | 5,484 |
| CRN-RB 2040-30 | 2 | R2 | 30 | 3.2 | 3.91 | 11° | 70 | 6 | 9,140 | 5,484 |
| CRN-RB 2040-40 | 2 | R2 | 40 | 3.2 | 3.91 | 11° | 90 | 6 | 10,710 | 6,426 |
| CRN-RB 2060-30 | 2 | R3 | 30 | 4.8 | 5.91 | − | 80 | 6 | 11,550 | 6,930 |
| CRN-RB 2060-50 | 2 | R3 | 50 | 4.8 | 5.91 | − | 120 | 6 | 13,860 | 8,316 |
