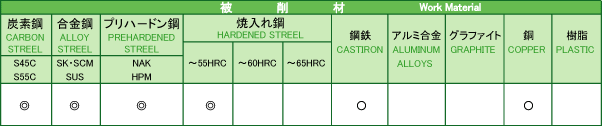

対応被削材表（◎は最適、○は適） 　　　　　　　　　　　　　 　★ご注文は型番をクリックして ください

型番 ボール半径 テーパ半角 刃長 大端径 全長 シャンク径 定価 特別価格
R A R φD' L φd
C-CTRB 4006-4-1 R0.3 30′ 4 0.66 38 3 16,300 9,780
C-CTRB 4006-6-1 R0.3 30′ 6 0.7 38 3 16,300 9,780
C-CTRB 4006-4-1.5 R0.3 45′ 4 0.7 38 3 16,300 9,780
C-CTRB 4006-6-1.5 R0.3 45′ 6 0.75 38 3 16,300 9,780
C-CTRB 4006-4-2 R0.3 1° 4 0.73 38 3 16,300 9,780
C-CTRB 4006-6-2 R0.3 1° 6 0.8 38 3 16,300 9,780
C-CTRB 4006-4-3 R0.3 1° 30′ 4 0.79 38 3 16,300 9,780
C-CTRB 4006-6-3 R0.3 1° 30′ 6 0.9 38 3 16,300 9,780
C-CTRB 4006-4-4 R0.3 2° 4 0.86 38 3 16,300 9,780
C-CTRB 4006-6-4 R0.3 2° 6 1 38 3 16,300 9,780
C-CTRB 4008-6-1 R0.4 30′ 6 0.9 38 3 16,300 9,780
C-CTRB 4008-8-1 R0.4 30′ 8 0.93 38 3 16,300 9,780
C-CTRB 4008-10-1 R0.4 30′ 10 0.97 45 4 16,300 9,780
C-CTRB 4008-6-1.5 R0.4 45 ′ 6 0.95 38 3 16,300 9,780
C-CTRB 4008-8-1.5 R0.4 45 ′ 8 1 38 3 16,300 9,780
C-CTRB 4008-10-1.5 R0.4 45 ′ 10 1.05 45 4 16,300 9,780
C-CTRB 4008-6-2 R0.4 1° 6 1 38 3 16,300 9,780
C-CTRB 4008-8-2 R0.4 1° 8 1.07 38 3 16,300 9,780
C-CTRB 4008-10-2 R0.4 1° 10 1.14 45 4 16,300 9,780
C-CTRB 4008-6-3 R0.4 1° 30 ′ 6 1.09 38 3 16,300 9,780
C-CTRB 4008-8-3 R0.4 1° 30 ′ 8 1.2 38 3 16,300 9,780
C-CTRB 4008-10-3 R0.4 1° 30 ′ 10 1.3 45 4 16,300 9,780
C-CTRB 4008-6-4 R0.4 2° 6 1.19 38 3 16,300 9,780
C-CTRB 4008-8-4 R0.4 2° 8 1.33 38 3 16,300 9,780
C-CTRB 4008-10-4 R0.4 2° 10 1.47 45 4 16,300 9,780
C-CTRB 4010-8-1 R0.5 30 ′ 8 1.13 45 4 16,300 9,780
C-CTRB 4010-10-1 R0.5 30 ′ 10 1.17 45 4 16,300 9,780
C-CTRB 4010-12-1 R0.5 30 ′ 12 1.2 45 4 16,500 9,900
C-CTRB 4010-16-1 R0.5 30 ′ 16 1.27 50 4 16,700 10,020
C-CTRB 4010-20-1 R0.5 30 ′ 20 1.34 55 4 16,700 10,020
C-CTRB 4010-8-1.5 R0.5 45 ′ 8 1.2 45 4 16,300 9,780
C-CTRB 4010-10-1.5 R0.5 45 ′ 10 1.25 45 4 16,300 9,780
C-CTRB 4010-12-1.5 R0.5 45 ′ 12 1.3 45 4 16,500 9,900
C-CTRB 4010-16-1.5 R0.5 45 ′ 16 1.41 50 4 16,700 10,020
C-CTRB 4010-20-1.5 R0.5 45 ′ 20 1.51 55 4 16,700 10,020
C-CTRB 4010-8-2 R0.5 1° 8 1.26 45 4 16,300 9,780
C-CTRB 4010-10-2 R0.5 1° 10 1.33 45 4 16,300 9,780
C-CTRB 4010-12-2 R0.5 1° 12 1.4 45 4 16,500 9,900
C-CTRB 4010-16-2 R0.5 1° 16 1.54 50 4 16,700 10,020
C-CTRB 4010-20-2 R0.5 1° 20 1.68 55 4 16,700 10,020
C-CTRB 4010-8-3 R0.5 1° 30 ′ 8 1.39 45 4 16,300 9,780
C-CTRB 4010-10-3 R0.5 1° 30 ′ 10 1.5 45 4 16,300 9,780
C-CTRB 4010-12-3 R0.5 1° 30 ′ 12 1.6 45 4 16,500 9,900
C-CTRB 4010-16-3 R0.5 1° 30 ′ 16 1.81 50 4 16,700 10,020
C-CTRB 4010-20-3 R0.5 1° 30 ′ 20 2.02 55 4 16,700 10,020
C-CTRB 4010-8-4 R0.5 2° 8 1.52 45 4 16,300 9,780
C-CTRB 4010-10-4 R0.5 2° 10 1.66 45 4 16,300 9,780
C-CTRB 4010-12-4 R0.5 2° 12 1.8 45 4 16,500 9,900
C-CTRB 4010-16-4 R0.5 2° 16 2.08 50 4 16,700 10,020
C-CTRB 4010-20-4 R0.5 2° 20 2.36 55 4 16,700 10,020
C-CTRB 4012-8-1 R0.6 30 ′ 8 1.33 45 4 16,300 9,780
C-CTRB 4012-10-1 R0.6 30 ′ 10 1.36 45 4 16,300 9,780
C-CTRB 4012-12-1 R0.6 30 ′ 12 1.4 45 4 16,500 9,900
C-CTRB 4012-16-1 R0.6 30 ′ 16 1.47 55 4 16,700 10,020
C-CTRB 4012-20-1 R0.6 30 ′ 20 1.54 55 4 16,700 10,020
C-CTRB 4012-8-1.5 R0.6 45 ′ 8 1.39 45 4 16,300 9,780
C-CTRB 4012-10-1.5 R0.6 45 ′ 10 1.45 45 4 16,300 9,780
C-CTRB 4012-12-1.5 R0.6 45 ′ 12 1.5 45 4 16,500 9,900
C-CTRB 4012-16-1.5 R0.6 45 ′ 16 1.6 55 4 16,700 10,020
C-CTRB 4012-20-1.5 R0.6 45 ′ 20 1.71 55 4 16,700 10,020
C-CTRB 4012-8-2 R0.6 1° 8 1.46 45 4 16,300 9,780
C-CTRB 4012-10-2 R0.6 1° 10 1.53 45 4 16,300 9,780
C-CTRB 4012-12-2 R0.6 1° 12 1.6 45 4 16,500 9,900
C-CTRB 4012-16-2 R0.6 1° 16 1.74 55 4 16,700 10,020
C-CTRB 4012-20-2 R0.6 1° 20 1.88 55 4 16,700 10,020
C-CTRB 4012-8-3 R0.6 1°30′ 8 1.59 45 4 16,300 9,780
C-CTRB 4012-10-3 R0.6 1°30′ 10 1.69 45 4 16,300 9,780
C-CTRB 4012-12-3 R0.6 1°30′ 12 1.8 45 4 16,500 9,900
C-CTRB 4012-16-3 R0.6 1°30′ 16 2.01 55 4 16,700 10,020
C-CTRB 4012-20-3 R0.6 1°30′ 20 2.22 55 4 16,700 10,020
C-CTRB 4012-8-4 R0.6 2° 8 1.72 45 4 16,300 9,780
C-CTRB 4012-10-4 R0.6 2° 10 1.86 45 4 16,300 9,780
C-CTRB 4012-12-4 R0.6 2° 12 2 45 4 16,500 9,900
C-CTRB 4012-16-4 R0.6 2° 16 2.28 55 4 16,700 10,020
C-CTRB 4012-20-4 R0.6 2° 20 2.55 55 4 16,700 10,020
C-CTRB 4015-8-1 R0.75 30′ 8 1.63 45 4 16,600 9,960
C-CTRB 4015-10-1 R0.75 30′ 10 1.66 45 4 16,600 9,960
C-CTRB 4015-12-1 R0.75 30′ 12 1.7 45 4 16,600 9,960
C-CTRB 4015-16-1 R0.75 30′ 16 1.77 55 4 16,800 10,080
C-CTRB 4015-20-1 R0.75 30′ 20 1.84 60 4 17,700 10,620
C-CTRB 4015-8-1.5 R0.75 45′ 8 1.69 45 4 16,600 9,960
C-CTRB 4015-10-1.5 R0.75 45′ 10 1.74 45 4 16,600 9,960
C-CTRB 4015-12-1.5 R0.75 45′ 12 1.79 45 4 16,500 9,900
C-CTRB 4015-16-1.5 R0.75 45′ 16 1.9 55 4 16,800 10,080
C-CTRB 4015-20-1.5 R0.75 45′ 20 2 60 4 17,700 10,620
C-CTRB 4015-8-2 R0.75 1° 8 1.75 45 4 16,600 9,960
C-CTRB 4015-10-2 R0.75 1° 10 1.82 45 4 16,600 9,960
C-CTRB 4015-12-2 R0.75 1° 12 1.89 45 4 16,600 9,960
C-CTRB 4015-16-2 R0.75 1° 16 2.03 55 4 16,800 10,080
C-CTRB 4015-20-2 R0.75 1° 20 2.17 60 4 17,700 10,620
C-CTRB 4015-8-3 R0.75 1°30′ 8 1.88 45 4 16,600 9,960
C-CTRB 4015-10-3 R0.75 1°30′ 10 1.98 45 4 16,600 9,960
C-CTRB 4015-12-3 R0.75 1°30′ 12 2.09 45 4 16,600 9,960
C-CTRB 4015-16-3 R0.75 1°30′ 16 2.3 55 4 16,800 10,080
C-CTRB 4015-20-3 R0.75 1°30′ 20 2.51 60 4 17,700 10,620
C-CTRB 4015-8-4 R0.75 2° 8 2.01 45 4 16,600 9,960
C-CTRB 4015-10-4 R0.75 2° 10 2.15 45 4 16,600 9,960
C-CTRB 4015-12-4 R0.75 2° 12 2.29 45 4 16,600 9,960
C-CTRB 4015-16-4 R0.75 2° 16 2.57 55 4 16,800 10,080
C-CTRB 4015-20-4 R0.75 2° 20 2.85 60 4 17,700 10,620
C-CTRB 4016-8-1 R0.8 30′ 8 1.73 45 4 16,800 10,080
C-CTRB 4016-10-1 R0.8 30′ 10 1.76 45 4 17,700 10,620
C-CTRB 4016-12-1 R0.8 30′ 12 1.8 45 4 17,700 10,620
C-CTRB 4016-16-1 R0.8 30′ 16 1.87 55 4 17,700 10,620
C-CTRB 4016-20-1 R0.8 30′ 20 1.94 60 4 17,700 10,620
C-CTRB 4016-8-1.5 R0.8 45′ 8 1.78 45 4 16,800 10,080
C-CTRB 4016-10-1.5 R0.8 45′ 10 1.84 45 4 17,700 10,620
C-CTRB 4016-12-1.5 R0.8 45′ 12 1.89 45 4 17,700 10,620
C-CTRB 4016-16-1.5 R0.8 45′ 16 2 55 4 17,700 10,620
C-CTRB 4016-20-1.5 R0.8 45′ 20 2.1 60 4 17,700 10,620
C-CTRB 4016-8-2 R0.8 1° 8 1.85 45 4 16,800 10,080
C-CTRB 4016-10-2 R0.8 1° 10 1.92 45 4 17,700 10,620
C-CTRB 4016-12-2 R0.8 1° 12 1.99 45 4 17,700 10,620
C-CTRB 4016-16-2 R0.8 1° 16 2.13 55 4 17,700 10,620
C-CTRB 4016-20-2 R0.8 1° 20 2.27 60 4 17,700 10,620
C-CTRB 4016-8-3 R0.8 1°30′ 8 1.98 45 4 16,600 9,960
C-CTRB 4016-10-3 R0.8 1°30′ 10 2.08 45 4 17,700 10,620
C-CTRB 4016-12-3 R0.8 1°30′ 12 2.19 45 4 17,700 10,620
C-CTRB 4016-16-3 R0.8 1°30′ 16 2.4 55 4 17,700 10,620
C-CTRB 4016-20-3 R0.8 1°30′ 20 2.61 60 4 17,700 10,620
C-CTRB 4016-8-4 R0.8 2° 8 2.1 45 4 16,600 9,960
C-CTRB 4016-10-4 R0.8 2° 10 2.24 45 4 17,700 10,620
C-CTRB 4016-12-4 R0.8 2° 12 2.38 45 4 17,700 10,620
C-CTRB 4016-16-4 R0.8 2° 16 2.66 55 4 17,700 10,620
C-CTRB 4016-20-4 R0.8 2° 20 2.94 60 4 17,700 10,620
C-CTRB 4018-8-1 R0.9 30′ 8 1.92 45 4 16,600 9,960
C-CTRB 4018-10-1 R0.9 30′ 10 1.96 45 4 17,700 10,620
C-CTRB 4018-12-1 R0.9 30′ 12 1.99 45 4 17,700 10,620
C-CTRB 4018-16-1 R0.9 30′ 16 2.06 55 4 17,700 10,620
C-CTRB 4018-20-1 R0.9 30′ 20 2.13 60 4 17,700 10,620
C-CTRB 4018-8-1.5 R0.9 45′ 8 1.99 45 4 16,600 9,960
C-CTRB 4018-10-1.5 R0.9 45′ 10 2.04 45 4 17,700 10,620
C-CTRB 4018-12-1.5 R0.9 45′ 12 2.09 45 4 17,700 10,620
C-CTRB 4018-16-1.5 R0.9 45′ 16 2.2 55 4 17,700 10,620
C-CTRB 4018-20-1.5 R0.9 45′ 20 2.3 60 4 17,700 10,620
C-CTRB 4018-8-2 R0.9 1° 8 2.05 45 4 16,600 9,960
C-CTRB 4018-10-2 R0.9 1° 10 2.12 45 4 17,700 10,620
C-CTRB 4018-12-2 R0.9 1° 12 2.19 45 4 17,700 10,620
C-CTRB 4018-16-2 R0.9 1° 16 2.33 55 4 17,700 10,620
C-CTRB 4018-20-2 R0.9 1° 20 2.47 60 4 17,700 10,620
C-CTRB 4018-8-3 R0.9 1°30′ 8 2.17 45 4 17,700 10,620
C-CTRB 4018-10-3 R0.9 1°30′ 10 2.28 45 4 17,700 10,620
C-CTRB 4018-12-3 R0.9 1°30′ 12 2.38 45 4 17,700 10,620
C-CTRB 4018-16-3 R0.9 1°30′ 16 2.59 55 4 17,700 10,620
C-CTRB 4018-20-3 R0.9 1°30′ 20 2.8 60 4 17,700 10,620
C-CTRB 4018-8-4 R0.9 2° 8 2.3 45 4 17,700 10,620
C-CTRB 4018-10-4 R0.9 2° 10 2.44 45 4 17,700 10,620
C-CTRB 4018-12-4 R0.9 2° 12 2.58 45 4 17,700 10,620
C-CTRB 4018-16-4 R0.9 2° 16 2.86 55 4 17,700 10,620
C-CTRB 4018-20-4 R0.9 2° 20 3.14 60 4 17,700 10,620
C-CTRB 4020-10-1 R1 30′ 10 2.16 45 4 17,700 10,620
C-CTRB 4020-12-1 R1 30′ 12 2.19 45 4 17,700 10,620
C-CTRB 4020-16-1 R1 30′ 16 2.26 55 4 17,700 10,620
C-CTRB 4020-20-1 R1 30′ 20 2.33 60 4 17,700 10,620
C-CTRB 4020-25-1 R1 30′ 25 2.42 60 4 18,800 11,280
C-CTRB 4020-30-1 R1 30′ 30 2.51 65 4 19,500 11,700
C-CTRB 4020-10-1.5 R1 45′ 10 2.24 45 4 17,700 10,620
C-CTRB 4020-12-1.5 R1 45′ 12 2.29 45 4 17,700 10,620
C-CTRB 4020-16-1.5 R1 45′ 16 2.39 55 4 17,700 10,620
C-CTRB 4020-20-1.5 R1 45′ 20 2.5 60 4 17,700 10,620
C-CTRB 4020-25-1.5 R1 45′ 25 2.63 60 4 18,800 11,280
C-CTRB 4020-30-1.5 R1 45′ 30 2.76 65 4 19,500 11,700
C-CTRB 4020-10-2 R1 1° 10 2.31 45 4 17,700 10,620
C-CTRB 4020-12-2 R1 1° 12 2.38 45 4 17,700 10,620
C-CTRB 4020-16-2 R1 1° 16 2.52 55 4 17,700 10,620
C-CTRB 4020-20-2 R1 1° 20 2.66 60 4 17,700 10,620
C-CTRB 4020-25-2 R1 1° 25 2.84 60 4 18,800 11,280
C-CTRB 4020-30-2 R1 1° 30 3.01 65 4 19,500 11,700
C-CTRB 4020-10-3 R1 1°30′ 10 2.47 45 4 17,700 10,620
C-CTRB 4020-12-3 R1 1°30′ 12 2.58 45 4 17,700 10,620
C-CTRB 4020-16-3 R1 1°30′ 16 2.79 55 4 17,700 10,620
C-CTRB 4020-20-3 R1 1°30′ 20 3 60 4 17,700 10,620
C-CTRB 4020-25-3 R1 1°30′ 25 3.26 65 6 19,740 11,844
C-CTRB 4020-30-3 R1 1°30′ 30 3.52 70 6 20,480 12,288
C-CTRB 4020-10-4 R1 2° 10 2.63 45 4 17,700 10,620
C-CTRB 4020-12-4 R1 2° 12 2.77 45 4 17,700 10,620
C-CTRB 4020-16-4 R1 2° 16 3.05 55 4 17,700 10,620
C-CTRB 4020-20-4 R1 2° 20 3.33 60 4 17,700 10,620
C-CTRB 4020-25-4 R1 2° 25 3.68 65 6 19,740 11,844
C-CTRB 4020-30-4 R1 2° 30 4.03 70 6 20,480 12,288
C-CTRB 4025-10-1 R1.25 30′ 10 2.65 60 6 19,950 11,970
C-CTRB 4025-12-1 R1.25 30′ 12 2.69 60 6 19,950 11,970
C-CTRB 4025-16-1 R1.25 30′ 16 2.76 60 6 19,950 11,970
C-CTRB 4025-20-1 R1.25 30′ 20 2.83 60 6 19,950 11,970
C-CTRB 4025-25-1 R1.25 30′ 25 2.91 70 6 21,320 12,792
C-CTRB 4025-10-1.5 R1.25 45′ 10 2.73 60 6 19,950 11,970
C-CTRB 4025-12-1.5 R1.25 45′ 12 2.78 60 6 19,950 11,970
C-CTRB 4025-16-1.5 R1.25 45′ 16 2.89 60 6 19,950 11,970
C-CTRB 4025-20-1.5 R1.25 45′ 20 2.99 60 6 19,950 11,970
C-CTRB 4025-25-1.5 R1.25 45′ 25 3.12 70 6 21,320 12,792
C-CTRB 4025-10-2 R1.25 1° 10 2.81 60 6 19,950 11,970
C-CTRB 4025-12-2 R1.25 1° 12 2.88 60 6 19,950 11,970
C-CTRB 4025-16-2 R1.25 1° 16 3.02 60 6 19,950 11,970
C-CTRB 4025-20-2 R1.25 1° 20 3.15 60 6 19,950 11,970
C-CTRB 4025-25-2 R1.25 1° 25 3.33 70 6 21,320 12,792
C-CTRB 4025-10-3 R1.25 1°30′ 10 2.96 60 6 19,950 11,970
C-CTRB 4025-12-3 R1.25 1°30′ 12 3.06 60 6 19,950 11,970
C-CTRB 4025-16-3 R1.25 1°30′ 16 3.27 60 6 19,950 11,970
C-CTRB 4025-20-3 R1.25 1°30′ 20 3.48 60 6 19,950 11,970
C-CTRB 4025-25-3 R1.25 1°30′ 25 3.74 70 6 21,320 12,792
C-CTRB 4025-10-4 R1.25 2° 10 3.11 60 6 19,950 11,970
C-CTRB 4025-12-4 R1.25 2° 12 3.25 60 6 19,950 11,970
C-CTRB 4025-16-4 R1.25 2° 16 3.53 60 6 19,950 11,970
C-CTRB 4025-20-4 R1.25 2° 20 3.81 60 6 19,950 11,970
C-CTRB 4025-25-4 R1.25 2° 25 4.16 70 6 21,320 12,792
C-CTRB 4040-25-1 R2 30′ 25 4.4 65 6 26,250 15,750
C-CTRB 4040-25-2 R2 1° 25 4.8 65 6 26,250 15,750
C-CTRB 4040-25-3 R2 1°30′ 25 5.21 65 6 26,250 15,750
C-CTRB 4040-25-4 R2 2° 25 5.61 70 6 26,250 15,750
