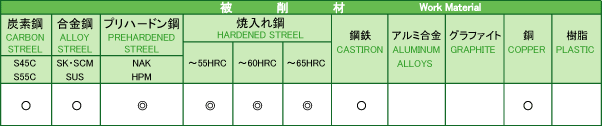

対応被削材表（◎は最適、○は適） 　　　　　　　　　　　　　 　★ご注文は型番をクリックして ください

型番 ボール半径 首部テーパ角 首下長 有効長 刃長 首径 シャンクテーパ角 全長 シャンク径 形状 定価 特別価格
HTNB2002-015-1 R0.1 30′ 1.5 − 0.16 − 16° 50 4 A 11,520 6,912
HTNB2002-020-1 R0.1 30′ 2 − 0.16 − 16° 50 4 A 12,120 7,272
HTNB2002-030-1 R0.1 30′ 3 − 0.16 − 16° 50 4 A 14,400 8,640
HTNB2002-015-2 R0.1 1° 1.5 − 0.16 − 16° 50 4 A 11,520 6,912
HTNB2002-020-2 R0.1 1° 2 − 0.16 − 16° 50 4 A 12,120 7,272
HTNB2002-030-2 R0.1 1° 3 − 0.16 − 16° 50 4 A 14,400 8,640
HTNB2002-015-3 R0.1 1°30′ 1.5 − 0.16 − 16° 50 4 A 11,520 6,912
HTNB2002-020-3 R0.1 1°30′ 2 − 0.16 − 16° 50 4 A 12,120 7,272
HTNB2002-030-3 R0.1 1°30′ 3 − 0.16 − 16° 50 4 A 14,400 8,640
HTNB2003-020-1 R0.15 30′ 2 − 0.24 − 16° 50 4 A 11,520 6,912
HTNB2003-030-1 R0.15 30′ 3 − 0.24 − 16° 50 4 A 12,120 7,272
HTNB2003-020-2 R0.15 1° 2 − 0.24 − 16° 50 4 A 11,520 6,912
HTNB2003-030-2 R0.15 1° 3 − 0.24 − 16° 50 4 A 12,120 7,272
HTNB2003-020-3 R0.15 1°30′ 2 − 0.24 − 16° 50 4 A 11,520 6,912
HTNB2003-030-3 R0.15 1°30′ 3 − 0.24 − 16° 50 4 A 12,120 7,272
HTNB2004-030-1 R0.2 30′ 3 − 0.32 − 16° 50 4 A 8,880 5,328
HTNB2004-040-1 R0.2 30′ 4 − 0.32 − 16° 50 4 A 8,880 5,328
HTNB2004-060-1 R0.2 30′ 6 − 0.32 − 16° 50 4 A 9,600 5,760
HTNB2004-030-2 R0.2 1° 3 − 0.32 − 16° 50 4 A 8,880 5,328
HTNB2004-040-2 R0.2 1° 4 − 0.32 − 16° 50 4 A 8,880 5,328
HTNB2004-060-2 R0.2 1° 6 − 0.32 − 16° 50 4 A 9,600 5,760
HTNB2004-030-3 R0.2 1°30′ 3 − 0.32 − 16° 50 4 A 8,880 5,328
HTNB2004-040-3 R0.2 1°30′ 4 − 0.32 − 16° 50 4 A 8,880 5,328
HTNB2004-060-3 R0.2 1°30′ 6 − 0.32 − 16° 50 4 A 9,600 5,760
HTNB2005-040-1 R0.25 30′ 4 − 0.4 − 16° 50 4 A 8,400 5,040
HTNB2005-060-1 R0.25 30′ 6 − 0.4 − 16° 50 4 A 8,880 5,328
HTNB2005-080-1 R0.25 30′ 8 − 0.4 − 16° 50 4 A 8,880 5,328
HTNB2005-100-1 R0.25 30′ 10 − 0.4 − 16° 50 4 A 9,600 5,760
HTNB2005-040-2 R0.25 1° 4 − 0.4 − 16° 50 4 A 8,400 5,040
HTNB2005-060-2 R0.25 1° 6 − 0.4 − 16° 50 4 A 8,880 5,328
HTNB2005-080-2 R0.25 1° 8 − 0.4 − 16° 50 4 A 8,880 5,328
HTNB2005-100-2 R0.25 1° 10 − 0.4 − 16° 50 4 A 9,600 5,760
HTNB2005-040-3 R0.25 1°30′ 4 − 0.4 − 16° 50 4 A 8,640 5,184
HTNB2005-060-3 R0.25 1°30′ 6 − 0.4 − 16° 50 4 A 8,880 5,328
HTNB2005-080-3 R0.25 1°30′ 8 − 0.4 − 16° 50 4 A 8,880 5,328
HTNB2005-100-3 R0.25 1°30′ 10 − 0.4 − 16° 50 4 A 9,600 5,760
HTNB2006-040-1 R0.3 30′ 4 0.9 0.48 0.56 16° 50 4 B 8,280 4,968
HTNB2006-060-1 R0.3 30′ 6 0.9 0.48 0.56 16° 50 4 B 8,520 5,112
HTNB2006-080-1 R0.3 30′ 8 0.9 0.48 0.56 16° 50 4 B 8,520 5,112
HTNB2006-100-1 R0.3 30′ 10 0.9 0.48 0.56 16° 50 4 B 8,640 5,184
HTNB2006-120-1 R0.3 30′ 12 0.9 0.48 0.56 16° 50 4 B 9,360 5,616
HTNB2006-160-1 R0.3 30′ 16 0.9 0.48 0.56 16° 50 4 B 9,360 5,616
HTNB2006-040-2 R0.3 1° 4 0.9 0.48 0.56 16° 50 4 B 8,280 4,968
HTNB2006-060-2 R0.3 1° 6 0.9 0.48 0.56 16° 50 4 B 8,520 5,112
HTNB2006-080-2 R0.3 1° 8 0.9 0.48 0.56 16° 50 4 B 8,520 5,112
HTNB2006-100-2 R0.3 1° 10 0.9 0.48 0.56 16° 50 4 B 8,640 5,184
HTNB2006-120-2 R0.3 1° 12 0.9 0.48 0.56 16° 50 4 B 9,360 5,616
HTNB2006-160-2 R0.3 1° 16 0.9 0.48 0.56 16° 50 4 B 9,360 5,616
HTNB2006-040-3 R0.3 1°30′ 4 0.9 0.48 0.56 16° 50 4 B 8,280 4,968
HTNB2006-060-3 R0.3 1°30′ 6 0.9 0.48 0.56 16° 50 4 B 8,520 5,112
HTNB2006-080-3 R0.3 1°30′ 8 0.9 0.48 0.56 16° 50 4 B 8,520 5,112
HTNB2006-100-3 R0.3 1°30′ 10 0.9 0.48 0.56 16° 50 4 B 8,640 5,184
HTNB2006-120-3 R0.3 1°30′ 12 0.9 0.48 0.56 16° 50 4 B 9,360 5,616
HTNB2006-160-3 R0.3 1°30′ 16 0.9 0.48 0.56 16° 50 4 B 9,360 5,616
HTNB2008-080-1 R0.4 30′ 8 1.2 0.64 0.76 16° 50 4 B 8,880 5,328
HTNB2008-120-1 R0.4 30′ 12 1.2 0.64 0.76 16° 60 4 B 9,360 5,616
HTNB2008-080-2 R0.4 1° 8 1.2 0.64 0.76 16° 50 4 B 8,880 5,328
HTNB2008-120-2 R0.4 1° 12 1.2 0.64 0.76 16° 60 4 B 9,360 5,616
HTNB2008-080-3 R0.4 1°30′ 8 1.2 0.64 0.76 16° 50 4 B 8,880 5,328
HTNB2008-120-3 R0.4 1°30′ 12 1.2 0.64 0.76 16° 60 4 B 9,360 5,616
HTNB2010-080-1 R0.5 30′ 8 1.5 0.8 0.95 16° 50 4 B 7,560 4,536
HTNB2010-120-1 R0.5 30′ 12 1.5 0.8 0.95 16° 50 4 B 7,560 4,536
HTNB2010-160-1 R0.5 30′ 16 1.5 0.8 0.95 16° 50 4 B 7,560 4,536
※ HTNB2010-200-1 R0.5 30′ 20 1.5 0.8 0.95 16° 60 4 B 9,600 5,760
HTNB2010-220-1 R0.5 30′ 22 1.5 0.8 0.95 16° 60 4 B 9,600 5,760
HTNB2010-260-1 R0.5 30′ 26 1.5 0.8 0.95 16° 65 4 B 10,080 6,048
HTNB2010-320-1 R0.5 30′ 32 1.5 0.8 0.95 16° 70 4 B 10,560 6,336
HTNB2010-360-1 R0.5 30′ 36 1.5 0.8 0.95 16° 80 4 B 11,040 6,624
HTNB2010-080-2 R0.5 1° 8 1.5 0.8 0.95 16° 50 4 B 7,560 4,536
HTNB2010-120-2 R0.5 1° 12 1.5 0.8 0.95 16° 50 4 B 7,560 4,536
HTNB2010-160-2 R0.5 1° 16 1.5 0.8 0.95 16° 50 4 B 7,560 4,536
※ HTNB2010-200-2 R0.5 1° 20 1.5 0.8 0.95 16° 60 4 B 9,600 5,760
HTNB2010-220-2 R0.5 1° 22 1.5 0.8 0.95 16° 60 4 B 9,600 5,760
HTNB2010-260-2 R0.5 1° 26 1.5 0.8 0.95 16° 65 4 B 10,080 6,048
HTNB2010-320-2 R0.5 1° 32 1.5 0.8 0.95 16° 70 4 B 10,560 6,336
HTNB2010-360-2 R0.5 1° 36 1.5 0.8 0.95 16° 80 4 B 11,040 6,624
HTNB2010-080-3 R0.5 1°30′ 8 1.5 0.8 0.95 16° 50 4 B 7,560 4,536
HTNB2010-120-3 R0.5 1°30′ 12 1.5 0.8 0.95 16° 50 4 B 7,560 4,536
HTNB2010-160-3 R0.5 1°30′ 16 1.5 0.8 0.95 16° 50 4 B 7,560 4,536
※ HTNB2010-200-3 R0.5 1°30′ 20 1.5 0.8 0.95 16° 60 4 B 9,600 5,760
HTNB2010-220-3 R0.5 1°30′ 22 1.5 0.8 0.95 16° 60 4 B 9,600 5,760
HTNB2010-260-3 R0.5 1°30′ 26 1.5 0.8 0.95 16° 65 4 B 10,080 6,048
HTNB2010-320-3 R0.5 1°30′ 32 1.5 0.8 0.95 16° 70 4 B 10,560 6,336
HTNB2010-360-3 R0.5 1°30′ 36 1.5 0.8 0.95 16° 80 4 B 11,040 6,624
※ HTNB2015-100-1 R0.75 30′ 10 2.25 1.2 1.42 16° 60 4 B 7,920 4,752
※ HTNB2015-120-1 R0.75 30′ 12 2.25 1.2 1.42 16° 60 4 B 7,920 4,752
※ HTNB2015-160-1 R0.75 30′ 16 2.25 1.2 1.42 16° 60 4 B 8,640 5,184
※ HTNB2015-200-1 R0.75 30′ 20 2.25 1.2 1.42 16° 60 4 B 8,640 5,184
※ HTNB2015-260-1 R0.75 30′ 26 2.25 1.2 1.42 16° 70 4 B 9,360 5,616
※ HTNB2015-300-1 R0.75 30′ 30 2.25 1.2 1.42 16° 70 4 B 9,360 5,616
※ HTNB2015-360-1 R0.75 30′ 36 2.25 1.2 1.42 16° 80 4 B 11,040 6,624
※ HTNB2015-100-2 R0.75 1° 10 2.25 1.2 1.42 16° 60 4 B 7,920 4,752
※ HTNB2015-120-2 R0.75 1° 12 2.25 1.2 1.42 16° 60 4 B 7,920 4,752
※ HTNB2015-160-2 R0.75 1° 16 2.25 1.2 1.42 16° 60 4 B 8,640 5,184
※ HTNB2015-200-2 R0.75 1° 20 2.25 1.2 1.42 16° 60 4 B 8,640 5,184
※ HTNB2015-260-2 R0.75 1° 26 2.25 1.2 1.42 16° 70 4 B 9,360 5,616
※ HTNB2015-300-2 R0.75 1° 30 2.25 1.2 1.42 16° 70 4 B 9,360 5,616
※ HTNB2015-360-2 R0.75 1° 36 2.25 1.2 1.42 16° 80 4 B 11,040 6,624
※ HTNB2015-100-3 R0.75 1°30′ 10 2.25 1.2 1.42 16° 60 4 B 7,920 4,752
※ HTNB2015-120-3 R0.75 1°30′ 12 2.25 1.2 1.42 16° 60 4 B 7,920 4,752
※ HTNB2015-160-3 R0.75 1°30′ 16 2.25 1.2 1.42 16° 60 4 B 8,640 5,184
※ HTNB2015-200-3 R0.75 1°30′ 20 2.25 1.2 1.42 16° 60 4 B 8,640 5,184
※ HTNB2015-260-3 R0.75 1°30′ 26 2.25 1.2 1.42 16° 70 4 B 9,360 5,616
※ HTNB2015-300-3 R0.75 1°30′ 30 2.25 1.2 1.42 16° 70 4 B 9,360 5,616
※ HTNB2015-360-3 R0.75 1°30′ 36 2.25 1.2 1.42 16° 80 4 B 11,040 6,624
※ HTNB2020-160-1 R1 30′ 16 3 1.6 1.91 16° 60 4 B 8,100 4,860
※ HTNB2020-200-1 R1 30′ 20 3 1.6 1.91 16° 60 4 B 8,640 5,184
HTNB2020-220-1 R1 30′ 22 3 1.6 1.91 16° 60 4 B 8,640 5,184
HTNB2020-260-1 R1 30′ 26 3 1.6 1.91 16° 60 4 B 9,600 5,760
※ HTNB2020-300-1 R1 30′ 30 3 1.6 1.91 16° 70 4 B 10,560 6,336
HTNB2020-320-1 R1 30′ 32 3 1.6 1.91 16° 70 4 B 10,560 6,336
HTNB2020-360-1 R1 30′ 36 3 1.6 1.91 16° 80 4 B 11,040 6,624
※ HTNB2020-400-1 R1 30′ 40 3 1.6 1.91 16° 80 4 B 12,480 7,488
HTNB2020-160-2 R1 1° 16 3 1.6 1.91 16° 60 4 B 8,100 4,860
※ HTNB2020-200-2 R1 1° 20 3 1.6 1.91 16° 60 4 B 8,640 5,184
HTNB2020-220-2 R1 1° 22 3 1.6 1.91 16° 60 4 B 8,640 5,184
HTNB2020-260-2 R1 1° 26 3 1.6 1.91 16° 60 4 B 9,600 5,760
※ HTNB2020-300-2 R1 1° 30 3 1.6 1.91 16° 70 4 B 10,560 6,336
HTNB2020-320-2 R1 1° 32 3 1.6 1.91 16° 70 4 B 10,560 6,336
HTNB2020-360-2 R1 1° 36 3 1.6 1.91 16° 80 4 B 11,040 6,624
※ HTNB2020-400-2 R1 1° 40 3 1.6 1.91 16° 80 4 B 13,100 7,860
HTNB2020-160-3 R1 1°30′ 16 3 1.6 1.91 16° 60 4 B 8,100 4,860
※ HTNB2020-200-3 R1 1°30′ 20 3 1.6 1.91 16° 60 4 B 8,640 5,184
HTNB2020-220-3 R1 1°30′ 22 3 1.6 1.91 16° 60 4 B 8,640 5,184
HTNB2020-260-3 R1 1°30′ 26 3 1.6 1.91 16° 60 4 B 9,600 5,760
※ HTNB2020-300-3 R1 1°30′ 30 3 1.6 1.91 16° 70 4 B 10,560 6,336
HTNB2020-320-3 R1 1°30′ 32 3 1.6 1.91 16° 70 4 B 10,560 6,336
HTNB2020-360-3 R1 1°30′ 36 3 1.6 1.91 16° 80 4 B 11,040 6,624
※ HTNB2020-400-3 R1 1°30′ 40 3 1.6 1.91 16° 80 4 B 13,100 7,860
※ HTNB2030-200-1 R1.5 30′ 20 4.5 2.4 2.89 16° 60 6 B 9,740 5,844
※ HTNB2030-260-1 R1.5 30′ 26 4.5 2.4 2.89 16° 70 6 B 10,400 6,240
※ HTNB2030-300-1 R1.5 30′ 30 4.5 2.4 2.89 16° 70 6 B 11,880 7,128
HTNB2030-320-1 R1.5 30′ 32 4.5 2.4 2.89 16° 70 6 B 12,480 7,488
※ HTNB2030-360-1 R1.5 30′ 36 4.5 2.4 2.89 16° 80 6 B 13,000 7,800
※ HTNB2030-400-1 R1.5 30′ 40 4.5 2.4 2.89 16° 80 6 B 13,200 7,920
HTNB2030-420-1 R1.5 30′ 42 4.5 2.4 2.89 16° 90 6 B 13,680 8,208
HTNB2030-520-1 R1.5 30′ 52 4.5 2.4 2.89 16° 100 6 B 15,360 9,216
※ HTNB2030-200-2 R1.5 1° 20 4.5 2.4 2.89 16° 60 6 B 9,740 5,844
※ HTNB2030-260-2 R1.5 1° 26 4.5 2.4 2.89 16° 70 6 B 10,400 6,240
※ HTNB2030-300-2 R1.5 1° 30 4.5 2.4 2.89 16° 70 6 B 11,880 7,128
HTNB2030-320-2 R1.5 1° 32 4.5 2.4 2.89 16° 70 6 B 12,480 7,488
※ HTNB2030-360-2 R1.5 1° 36 4.5 2.4 2.89 16° 80 6 B 13,000 7,800
※ HTNB2030-400-2 R1.5 1° 40 4.5 2.4 2.89 16° 80 6 B 13,200 7,920
HTNB2030-420-2 R1.5 1° 42 4.5 2.4 2.89 16° 90 6 B 13,680 8,208
HTNB2030-520-2 R1.5 1° 52 4.5 2.4 2.89 16° 100 6 B 15,360 9,216
※ HTNB2030-200-3 R1.5 1°30′ 20 4.5 2.4 2.89 16° 60 6 B 9,740 5,844
※ HTNB2030-260-3 R1.5 1°30′ 26 4.5 2.4 2.89 16° 70 6 B 10,400 6,240
※ HTNB2030-300-3 R1.5 1°30′ 30 4.5 2.4 2.89 16° 70 6 B 11,880 7,128
HTNB2030-320-3 R1.5 1°30′ 32 4.5 2.4 2.89 16° 70 6 B 12,480 7,488
※ HTNB2030-360-3 R1.5 1°30′ 36 4.5 2.4 2.89 16° 80 6 B 13,000 7,800
※ HTNB2030-400-3 R1.5 1°30′ 40 4.5 2.4 2.89 16° 80 6 B 13,200 7,920
HTNB2030-420-3 R1.5 1°30′ 42 4.5 2.4 2.89 16° 90 6 B 13,680 8,208
HTNB2030-580-3 R1.5 1°30′ 58 4.5 2.4 2.89 16° 100 6 B 15,360 9,216
※ HTNB2040-400-1 R2 30′ 40 6 3.2 3.87 16° 80 6 B 15,000 9,000
HTNB2040-620-1 R2 30′ 62 6 3.2 3.87 16° 120 6 B 19,200 11,520
※ HTNB2040-400-2 R2 1° 40 6 3.2 3.87 16° 80 6 B 15,000 9,000
HTNB2040-600-2 R2 1° 60 6 3.2 3.87 16° 120 6 B 19,200 11,520
HTNB2040-410-3 R2 1°30′ 41 6 3.2 3.87 16° 80 6 B 15,000 9,000
※追加型番
